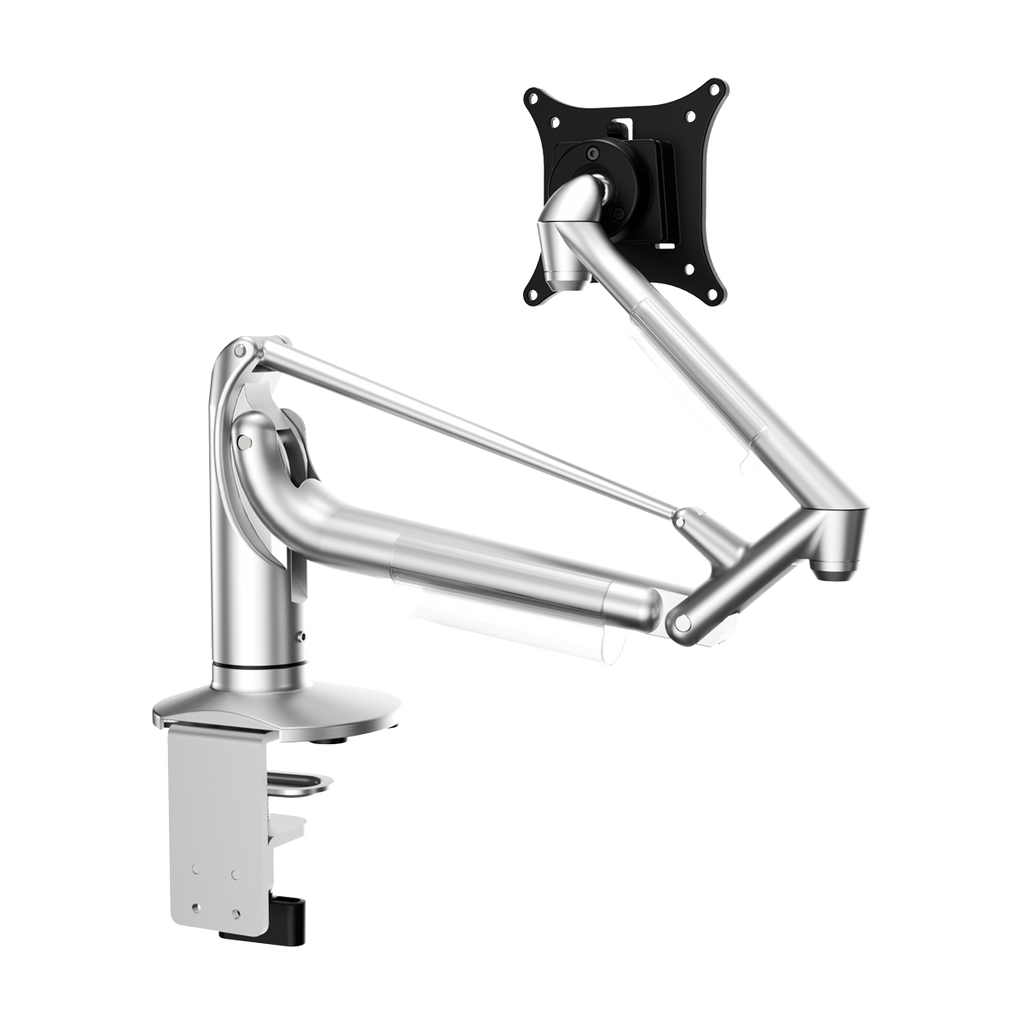

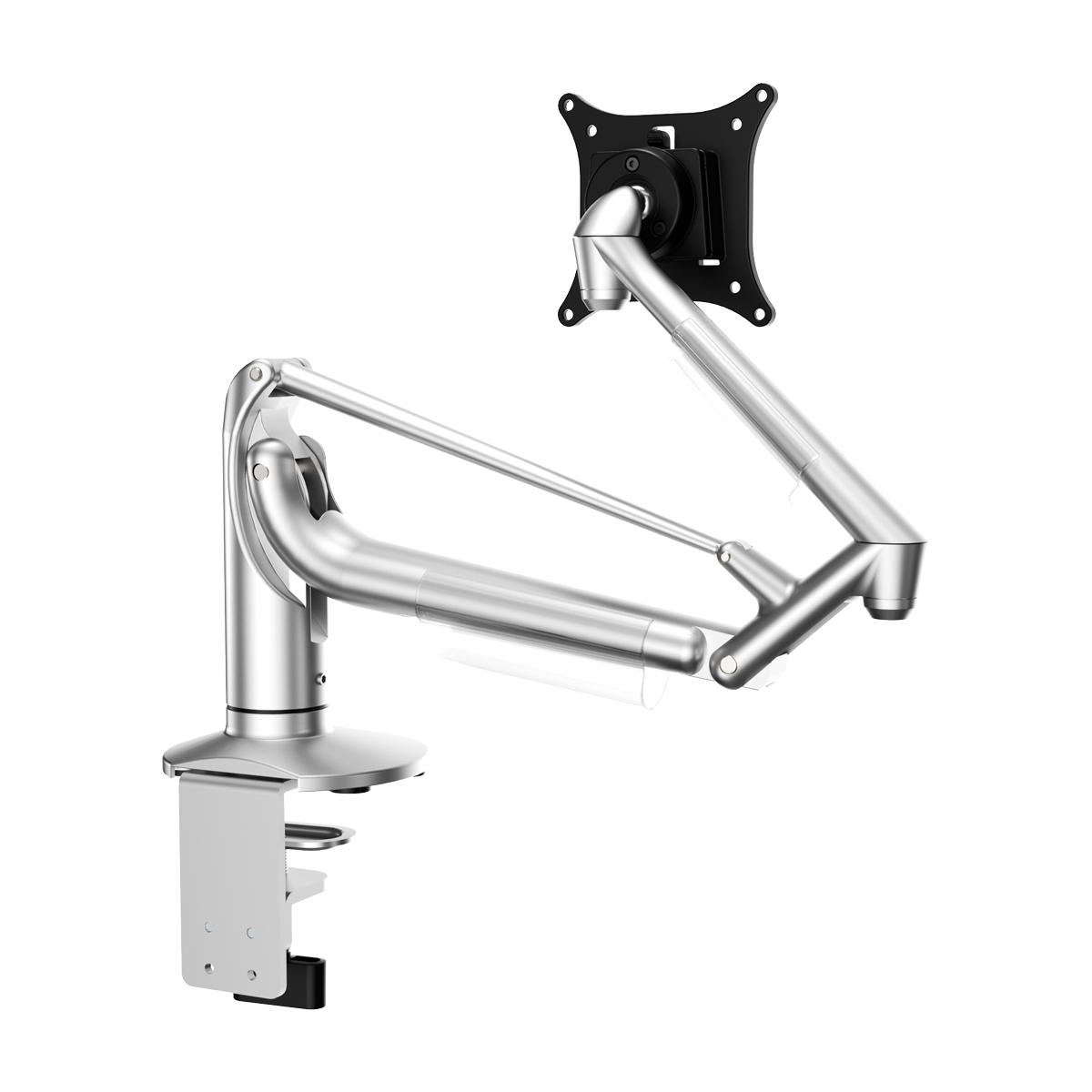

Gallery shows Silver Gray. Monitor, desk, and display cables are not included.
Design
A linked structure carries the movement above the desk.
The aluminum-alloy arm combines an adjustable gas spring, articulated joints, a quick-release VESA plate, and enclosed cable guides. The result is a single structure that supports the display while keeping adjustment and cable routing together.

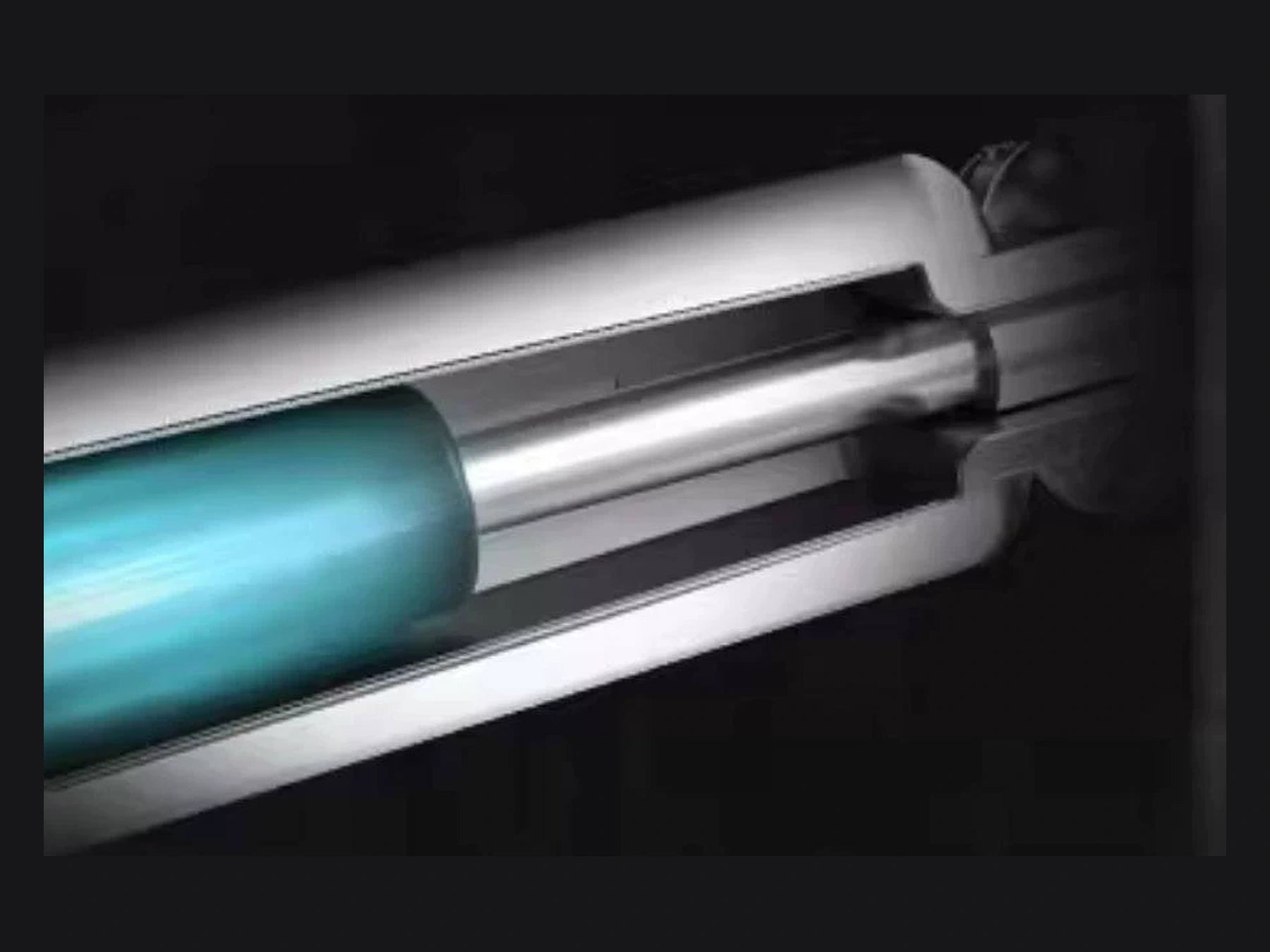

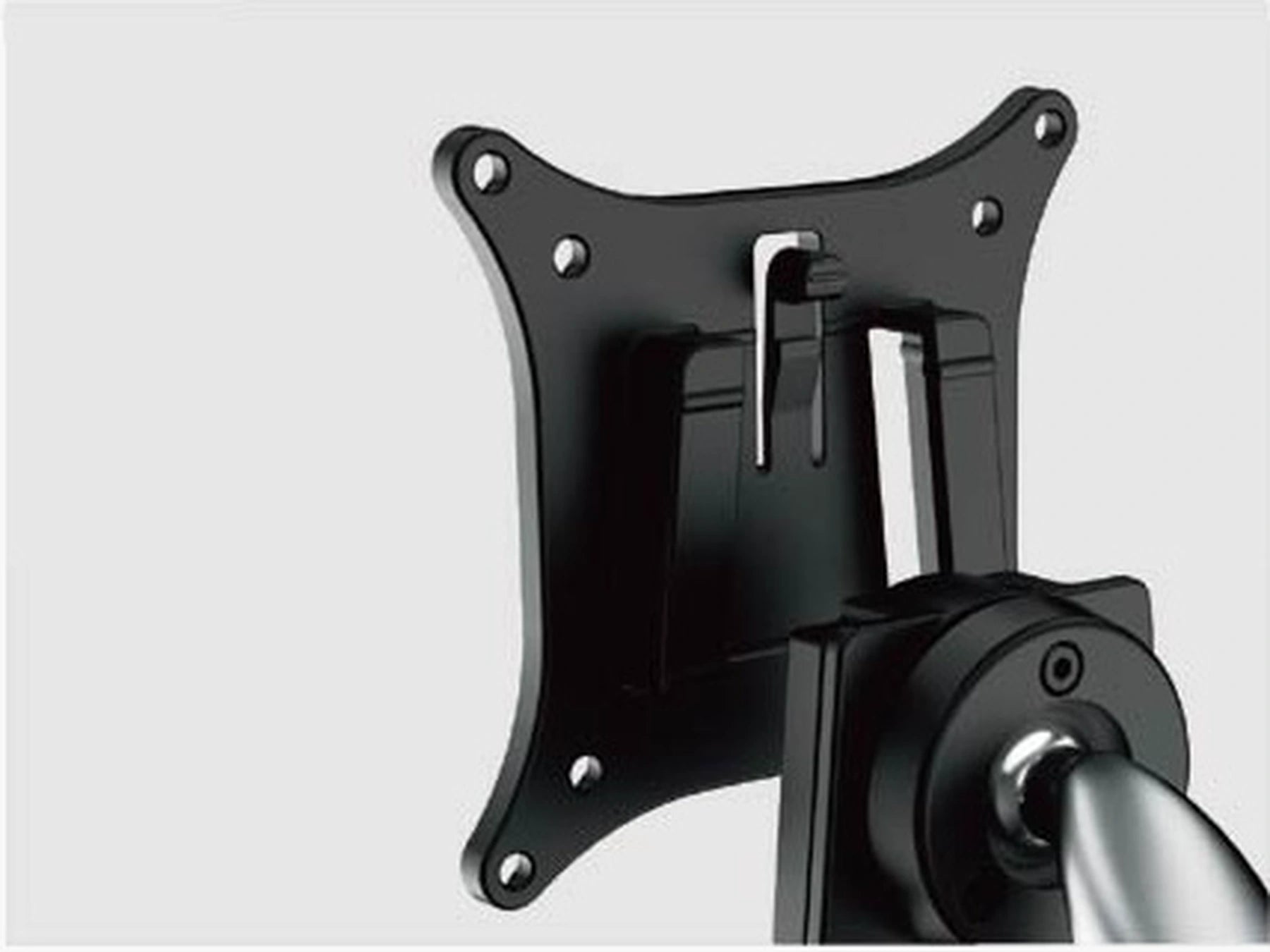

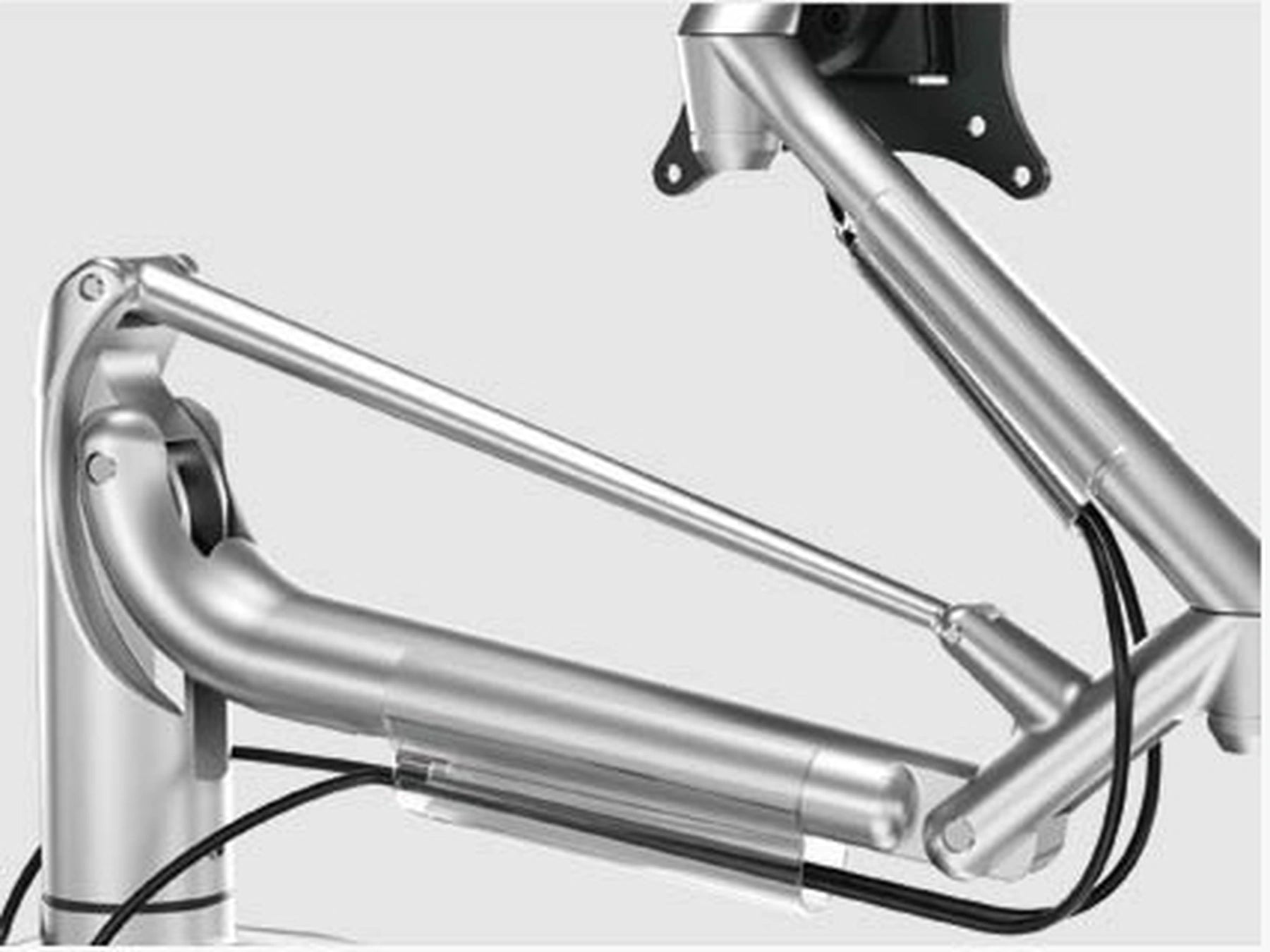

Gas-spring balanceAdjust the tension after the monitor is installed so the arm can hold its working position.Quick-release VESAThe removable plate lets the display attach after the arm is in place.Integrated cable guidesPower and display leads stay close to the linked arm sections as they move.
Product Dimensions
Check the screen, desk, and working range together.
This configuration supports one monitor up to 34 inches. Fit depends on the display weight and VESA pattern as well as the desktop thickness, so confirm all four before ordering.

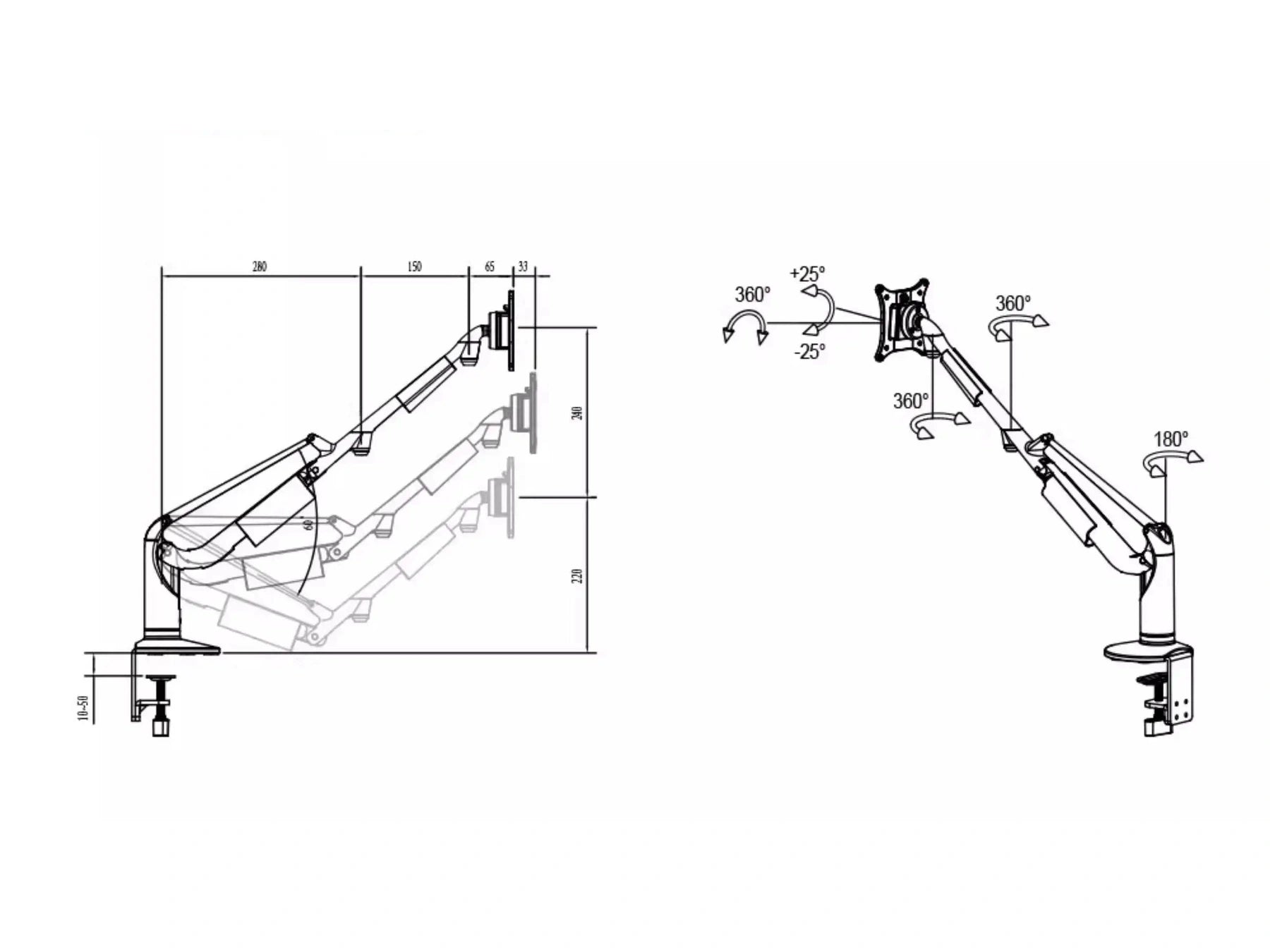

Original product drawing showing the arm’s dimensions and available joint movement.
Display size
Up to 34 in
Load range
2–10 kg (4.4–22.0 lb)
VESA pattern
75 × 75 mm or 100 × 100 mm
Desktop thickness
10–80 mm (0.4–3.1 in) for the supplied desk clamp
Working range
430 mm (16.9 in) horizontal reach and 240 mm (9.4 in) vertical travel
In the box
Arm assembly, desk-clamp base, quick-release VESA plate, and installation hardware. Monitor, desk, and display cables are not included.
Before ordering: weigh the monitor without its original stand and check the desk edge, underside clearance, and full arm travel.
Material & Care
Painted aluminum, with simple everyday care.
The aluminum-alloy arm has a coated finish in Silver Gray, White, or Black. Adjust it by holding the arm frame, and keep fingers and loose objects clear of moving joints.
Everyday cleaning
Wipe the frame and VESA plate with a soft, dry microfiber cloth.
Marks
Use a lightly damp soft cloth, then dry the finish promptly.
Avoid
Abrasive pads, solvents, standing moisture, overloading, or forcing the joints.
Shipping info
Delivery and returns for your setup.
Delivery
Delivery to eligible US addresses typically takes 4–6 weeks from order to arrival. Tracking details are emailed after dispatch. Ships directly from China to eligible US addresses.
Standard delivery is free to the contiguous 48 US states and Washington, DC, including rural and remote ZIP codes. Alaska, Hawaii and other supported special destinations have a US$19.99–US$99.99 delivery charge based on combined order weight, shown at checkout. Deskmith covers any delivery cost above that charge. No additional customs duties or import fees are charged. Any applicable sales tax is shown at checkout.
Returns
Eligible unused and uninstalled items may be returned within 30 days of delivery in their original packaging. Contact us before sending anything; return shipping is paid by the customer unless the item arrived damaged or defective.

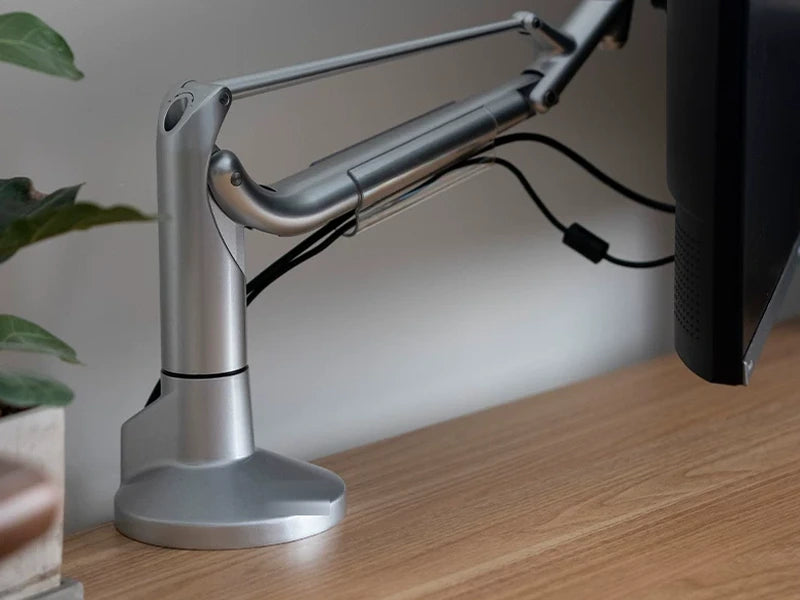

The arm lets one display change position without moving its desk mount. Each view isolates one direction of movement, making the working range easier to understand before setup.
Raise or lower
Change the display height through the arm while the desk mount stays in place.
Change the viewing angle
Tilt the mounted screen forward or back while the arm remains in position.
Switch the orientation
Rotate the display between landscape and portrait for different layouts.
Move across the desk
Swing the arm sideways to redirect the screen or move it clear of the work surface.
From clamp to screen.
Follow the installation in sequence: secure the desk clamp, fit the arm and VESA plate, route the cables, mount the display, then make the final balance adjustment.
Specifications
Model
M1
Type
Single-monitor gas-spring arm
Construction
Articulated aluminum-alloy frame
Finish
Painted surface in Silver Gray, White, or Black
Display adjustment
±25° tilt and 360° screen rotation
Product weight
3.2 kg (7.1 lb)
Packaged size
500 × 220 × 330 mm (19.7 × 8.7 × 13.0 in)
Installation & Care
Check the monitor first
Confirm the display weight and VESA pattern, then remove its original stand according to the monitor manufacturer’s instructions. Keep the arm secured while releasing its transport restraint; the gas spring stores energy and can open quickly.
Install on a sound desktop

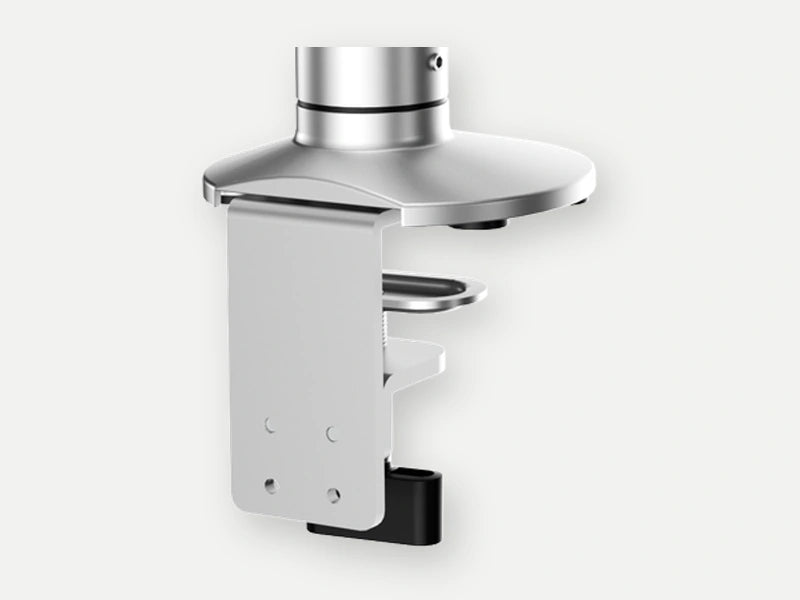

Use the supplied desk clamp on a sound, level surface. Check the desk edge, underside structure, and the arm’s full path before tightening the base; do not mount to glass or a hollow surface unless its manufacturer explicitly approves a monitor arm.
Adjust without forcing the joints
Balance the gas spring for the installed monitor, then move the arm by its frame rather than pulling on the screen. Dust with a soft cloth; avoid abrasive pads, solvents, and standing moisture.
FAQ
Will it work with a curved or ultrawide display?
Shape alone does not determine fit. Use the monitor’s actual weight without its stand, VESA pattern, and physical clearance as the deciding checks; do not rely on diagonal size alone.
Why does the screen rise or sink after installation?
The gas-spring tension must be balanced for the installed monitor. Adjust it gradually with the screen supported, following the installation guide, until the arm holds position without drifting.
Can it be installed on glass or a hollow desktop?
Only when the desk manufacturer explicitly approves the surface and mounting method for a monitor arm. Otherwise, use a sound solid desktop that can take the clamp load without crushing, flexing, or cracking.
